Micro HV 10KV电连接件
Specifications
Materials
Housing:  304 Stainless steel
Pin:  Molybdenum (Gold plated)
Insulation:  Alumina ceramic
Flange:  304 Stainless steel
Magnetic Materials:  No
Voltage Rating   10 kV DC*
Current Rating   3 Amps
Temperature Range
     -269º C to 450º C, ISO KF -25º C to 205º C
Pressure @ 20ºC
     1395 PSIG (96 Bar), ISO KF 0 PSIG
Leak Rate   <1x10-10 atm-cc/sec (He)


Installation: Weld, ISO KF or ConFlat
No. Pins Installation Part No.

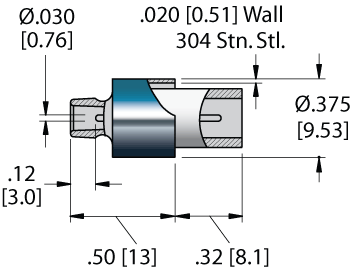

1 Weld 21140-01-W
1 NW16KF 21211-01-KF
2 NW40KF 21215-01-KF
3 NW40KF 21216-01-KF
4 NW40KF 21217-01-KF
1 1 1/3" ConFlat (NW16CF) 21210-01-CF
2 2 3/4" ConFlat (NW35CF) 21212-01-CF
3 2 3/4" ConFlat (NW35CF) 21213-01-CF
4 2 3/4" ConFlat (NW35CF) 21214-01-CF

Accessories


Type Material Description Temperature ºC Part No.
Min    Max

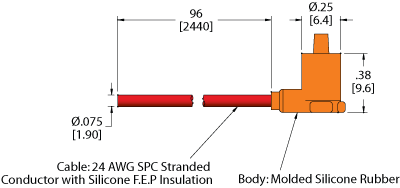

Micro HV Air Side Cable Assembly - 24 AWG Silicone 10 kV - 3 Amps - 8 ft. -55    125 21039-01-A
0.032 Crimp Type Contacts Beryllium Copper Accepts wire up to 0.032 [0.81] -269    200 11288-02-X
Crimp Tool   For 0.025" - 0.075" Crimp Diameters        2840-05
