1-2 KV电连接件

Specifications

Materials

Housing: 304 Stainless steel

Pin: See table

Insulation: Alumina ceramic

Flange: 304 Stainless steel

Magnetic Materials: See table

Voltage Rating 1 kV DC

Current Rating See table

Temperature Range

-269º C to 450º C

Pressure @ 20ºC

3500 PSIG (241 Bar)

Leak Rate <1x10^-10 atm-cc/sec (He)

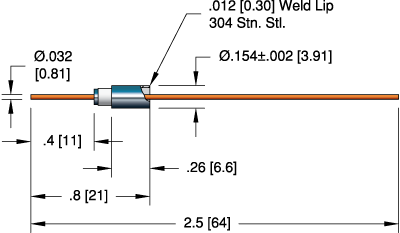

0.032 [0.81] Dia. Single Conductor

No. Pins	Installation	Voltage DC	Conductor		Magnetic Materials	Part No.
No. Pins	Installation	Voltage DC	Amps	Material	Magnetic Materials	Part No.
1	Weld	1 kV	1.1	304 Stn. Stl.	No	9297-03-W
1	Weld	1 kV	5	Nickel	Yes	9297-01-W
1	Weld	1 kV	8.5	Molybdenum	No	9297-06-W
1	Weld	1 kV	16	Copper	No	9297-08-W

Specifications

Materials

Housing: 304 Stainless steel

Pin: See table

Insulation: Alumina ceramic

Flange: 304 Stainless steel

Magnetic Materials: See table

Voltage Rating See table

Current Rating See table

Temperature Range

-269º C to 450º C
ISO KF -25º C to 205º C

Pressure @ 20ºC

2 & 4 pin: 1400 PSIG (96 Bar)
8 pin: 500 PSIG (34 Bar)

Leak Rate <1x10^-10 atm-cc/sec (He)

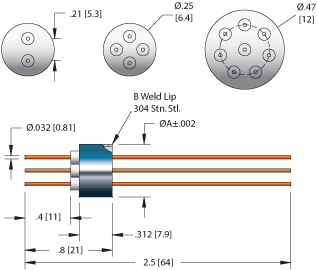

0.032 [0.81] Dia. 2, 4 or 8 Conductor

No. Pins	Installation	Voltage DC	Conductor		Dimensions			Magnetic Materials	Part No.
No. Pins	Installation	Voltage DC	Amps	Material	A	B	C	Magnetic Materials	Part No.
2	Weld	2 kV	1.1	304 Stn. Stl.	0.497 [12.62]	.020 [0.51]	-	No	9298-07-W
2	Weld	2 kV	5	Nickel	0.497 [12.62]	.020 [0.51]	-	Yes	9298-01-W
2	Weld	2 kV	8.5	Molybdenum	.497 [12.62]	.020 [0.51]	-	No	9298-05-W
2	Weld	2 kV	16	Copper	0.497 [12.62]	.020 [0.51]	-	No	9298-06-W
4	Weld	2 kV	1.1	304 Stn. Stl.	0.497 [12.62]	.020 [0.51]	-	No	9299-05-W
4	Weld	2 kV	5	Nickel	0.497 [12.62]	.020 [0.51]	-	Yes	9299-01-W
4	Weld	2 kV	8.5	Molybdenum	0.497 [12.62]	.020 [0.51]	-	No	9299-04-W
4	Weld	2 kV	16	Copper	0.497 [12.62]	.020 [0.51]	-	No	9299-06-W
8	Weld	1.5 kV	1.1	304 Stn. Stl.	0.747 [18.97]	.035 [0.89]	-	No	9294-03-W
8	Weld	1.5 kV	5	Nickel	0.747 [18.97]	.035 [0.89]	-	Yes	9294-01-W
8	Weld	1.5 kV	8.5	Molybdenum	0.747 [18.97]	.035 [0.89]	-	No	9294-04-W
8	Weld	1.5 kV	16	Copper	0.747 [18.97]	.035 [0.89]	-	No	9294-08-W
2	NW16KF	2 kV	1.1	304 Stn. Stl.	-	-	.9 [23]	No	17006-01-KF
2	NW16KF	2 kV	5	Nickel	-	-	.9 [23]	Yes	17006-02-KF
2	NW16KF	2 kV	8.5	Molybdenum	-	-	.9 [23]	No	17006-03-KF
2	NW16KF	2 kV	16	Copper	-	-	.9 [23]	No	17006-04-KF
4	NW16KF	2 kV	1.1	304 Stn. Stl.	-	-	.9 [23]	No	17007-01-KF
4	NW16KF	2 kV	5	Nickel	-	-	.9 [23]	Yes	17007-02-KF
4	NW16KF	2 kV	8.5	Molybdenum	-	-	0.9 [23]	No	17007-03-KF
4	NW16KF	2 kV	16	Copper	-	-	.9 [23]	No	17007-04-KF
8	NW16KF	1.5 kV	1.1	304 Stn. Stl.	-	-	1.3 [34]	No	17008-01-KF
8	NW16KF	1.5 KV	5	Nickel	-	-	1.3 [34]	Yes	17008-02-KF
8	NW16KF	1.5 kV	8.5	Molybdenum	-	-	1.3 [34]	No	17008-03-KF
2	NW16CF	2 kV	1.1	304 Stn. Stl.	-	-	.9 [23]	No	17046-01-CF
2	NW16CF	2 kV	5	Nickel	-	-	.9 [23]	Yes	17046-02-CF
2	NW16CF	2 kV	8.5	Molybdenum	-	-	.9 [23]	No	17046-03-CF
2	NW16CF	2 kV	16	Copper	-	-	.9 [23]	No	17046-04-CF
4	NW16CF	2 kV	1.1	304 Stn. Stl.	-	-	.9 [23]	No	17048-01-CF
4	NW16CF	2 kV	5	Nickel	-	-	.9 [23]	Yes	17048-02-CF
4	NW16CF	2 kV	8.5	Molybdenum	-	-	.9 [23]	No	17048-03-CF
4	NW16CF	2 kV	16	Copper	-	-	.9 [23]	No	17048-04-CF
8	NW16CF	1.5 kV	1.1	304 Stn. Stl.	-	-	1.3 [34]	No	9340-06-CF
8	NW16CF	1.5 kV	5	Nickel	-	-	1.3 [34]	Yes	9340-01-CF
8	NW16CF	1.5 kV	8.5	Molybdenum	-	-	1.3 [34]	No	9340-04-CF
8	NW16CF	1.5 kV	16	Copper	-	-	1.3 [34]	No	9340-05-CF
8	NW16KF	1.5kV	16	Copper	-	-	1.3 [34]	No	17008-04-KF

Accessories

Type	Material	Description	Part No.
Type	Material	Description	Part No.
In-Vacuum Cable - 28 AWG Stranded	Kapton	850 V - 2.5 Amps - 30 ft. - .028 Dia.	21621-01-A
In-Vacuum Cable - 22 AWG Stranded	Kapton	850 V - 5 Amps - 30 ft. - .035 Dia.	21643-01-A
0.032 Crimp Contacts	Beryllium Copper	Accepts wire up to 0.032 [0.81]	11288-02-X
Crimp Tool		For 0.025" - 0.075" Crimp Diameters	2840-05
