2&5-6 KV电连接件
Specifications
Materials
Housing:  304 Stainless steel
Pin:  See table
Insulation:  Alumina ceramic
Flange:  NA
Magnetic Materials:  See table
Voltage Rating   See table
Current Rating   See table
Temperature Range
     -269º C to 450º C
     ISO KF -25º C to 205º C
Pressure @ 20ºC
     3500 PSIG (241 Bar)
Leak Rate   <1x10-10 atm-cc/sec (He)



Single Pin
Installation: Weld or NPT

No. Pins Installation Voltage DC Conductor Magnetic Materials Part No.
W    Amps    Material
1 Weld 5 kV -    1.8    304 Stn. Stl. No 9791-04-W
1 Weld 5 kV -    8.2    Nickel Yes 9791-02-W
1 Weld 5 kV -    27    Copper No 9791-08-W
1 Weld 5 kV .005    -    Nickel Tube Yes 9791-06-W
1 1/8"NPT 5 kV -    27    Copper Yes 2846-01-A
    5 kV      1.8    304 Stn. Stl. Yes 2846-03-A
1 Weld 2KV      1.8    304 Stn. Stl no 7844-02-W
1 Weld 2KV      8.2    Nickel Yes 7844-01-W
1 Weld 2KV      13.5    Molybdenum No 7844-21-W
1 Weld 2KV      27    Copper No 7844-04-W
1 Weld 5KV      13.5    Molybdenum No 7844-01-W
1 Weld 5KV      13.5    Molybdenum No 9791-09-W

Specifications
Materials
Housing:  304 Stainless steel
Pin:  See table
Insulation:  Alumina ceramic
Flange:  304 Stainless steel
Magnetic Materials:  See table
Voltage Rating   See table
Current Rating   See table
Temperature Range
     -269º C to 450º C
     ISO KF -25º C to 205º C
Pressure @ 20ºC
     1250 PSIG (86 Bar), ISO KF 0 PSIG
Leak Rate   <1x10-10 atm-cc/sec (He)



2 & 4 Pin
Installation: Weld, ISO KF or ConFlat
No. Pins Installation Voltage DC Conductor Magnetic Materials Part No.
W    Amps    Material
2 Weld 6 kV -    1.8    304 Stn. Stl. No 9215-04-W
2 Weld 6 kV -    8.2    Nickel Yes 9215-02-W
2 Weld 6 kV -    27    Copper No 9215-08-W
4 Weld 6 kV -    1.8    304 Stn. Stl. No 9216-04-W
4 Weld 6 kV -    8.2    Nickel Yes 9216-02-W
4 Weld 6 kV -    27    Copper No 9216-08-W
2 NW16KF 6 kV -    1.8    304 Stn. Stl. No 17018-01-KF
2 NW16KF 6 kV -    8.2    Nickel Yes 17018-02-KF
2 NW16KF 6 kV -    27    Copper No 17018-04-KF
4 NW16KF 6 kV -    1.8    304 Stn. Stl. No 17019-01-KF
4 NW16KF 6 kV -    8.2    Nickel Yes 17019-02-KF
4 NW16KF 6 kV -    27    Copper No 17019-04-KF
2 1 1/3" ConFlat (NW16CF) 6 kV -    1.8    304 Stn. Stl. No 9871-02-CF
2 1 1/3" ConFlat (NW16CF) 6 kV -    8.2    Nickel Yes 9871-01-CF
2 1 1/3" ConFlat (NW16CF) 6 kV -    27    Copper No 9871-04-CF
4 1 1/3" ConFlat (NW16CF) 6 kV -    1.8    304 Stn. Stl. No 9871-06-CF
4 1 1/3" ConFlat (NW16CF) 6 kV -    8.2    Nickel Yes 9871-05-CF
4 1 1/3" ConFlat (NW16CF) 6 kV -    27    Copper No 9871-08-CF
2 Weld 6KV               9215-14-W
4 Weld 6KV      13.5    Molybdenum No 9216-14-W

Accessories


Type Material Description Part No.
In-Vacuum Cable - 28 AWG Stranded Kapton 850 V - 2.5 Amps - 30 ft. - .028 Dia. 21621-01-A
In-Vacuum Cable - 22 AWG Stranded Kapton 850 V - 5 Amps - 30 ft. - .035 Dia. 21643-01-A
In-Vacuum Cable - 12 AWG Stranded Kapton 850 V - 20 Amps - 15 ft. - .101 Dia. 21702-02-A
Adjustable Wire Stripper   20-30 AWG (.25 - .80mm) 21128-01
0.050 Crimp Contacts Beryllium Copper Accepts wire up to 0.062 [1.6] 11911-02-X
.050 Set Screw Contacts Beryllium Copper Accepts wire up to 0.050 [1.3] 7429-02-A
0.050 Barrel Type Contacts Beryllium Copper Accepts wire up to 0.050 [1.3] 7332-02-A
Crimp Tool   For 0.025" - 0.075" Crimp Diameters 2840-05

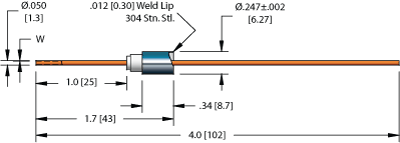

Leak Rate < 1x10-10 atm-cc/sec (He). Vacuum and pressure specifications apply to the right side of the drawing. All dimensions are in inches [millimeters].
