排针式电连接件

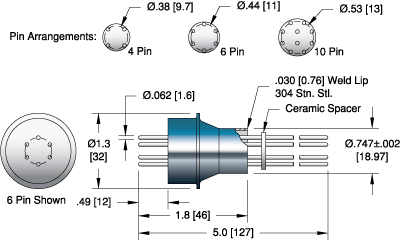

Specifications - 4, 6 & 10 Pin
Materials
Pin:  Alumel
Insulation:  Alumina ceramic
Flange:  304 Stainless steel
Magnetic Materials:  Yes
Voltage Rating   See table
Current Rating   5 Amps per pin
Temperature Range
     -269º C to 450º C
     ISO KF -25º C to 205º C
Pressure @ 20ºC
          ISO KF:  0 PSIG
          4 Pin:  600 PSIG ( 41 Bar)
          6 Pin:  550 PSIG ( 38 Bar)
          10 Pin:  500 PSIG (34 Bar)
Leak Rate   <1x10-10 atm-cc/sec (He)


Installation: Weld, ISO KF or ConFlat
No. Pins Installation Voltage DC Part No.
Pin/Shield    Pin/Pin
4 Weld 3 kV    1.5 kV 10234-01-W
6 Weld 3 kV    1.5 kV 10235-01-W
10 Weld 1.5 kV    800 V 10236-01-W
4 NW16KF 3 kV    1.5 kV 10234-13-KF
6 NW16KF 3 kV    1.5 kV 10235-13-KF
10 NW16KF 1.5 kV    800 V 10236-15-KF
4 1 1/3" ConFlat ( NW16CF) 3 kV    1.5 kV 10234-02-CF
6 1 1/3" ConFlat ( NW16CF) 3 kV    1.5 kV 10235-02-CF
10 1 1/3" ConFlat ( NW16CF) 1.5 kV    800 V 10236-02-CF
4 2 3/4" ConFlat ( NW35CF) 3 kV    1.5 kV 10234-03-CF
6 2 3/4" ConFlat ( NW35CF) 3 kV    1.5 kV 10235-03-CF
10 2 3/4" ConFlat ( NW35CF) 1.5 kV    800 V 10236-03-CF

Accessories

Type Material Description Part No.
In-Vacuum Cable - 28 AWG Stranded Kapton 850 V - 2.5 Amps - 30 ft. - .028 Dia. 21621-01-A
In-Vacuum Cable - 22 AWG Stranded Kapton 850 V - 5 Amps - 30 ft. - .035 Dia. 21643-01-A
0.062 Crimp Contacts Alumel Accepts wire up to 0.050 [1.3] 11259-06-X
Crimp Tool   For 0.025" - 0.075" Crimp Diameters 2840-05
Contacts priced and sold in packages of 5.
